1/4"注塑绝缘公制套筒
选用优质的50BV合金钢冷挤, 每个产品经10000V耐高压检测产品符合DIN-EN/IEC 60900:2018标准codeLsizeD2D1EF8301102-0142mm417.510EF8301102-0242mm517.511EF83011
详情介绍
选用优质的50BV合金钢冷挤, 每个产品经10000V耐高压检测
产品符合DIN-EN/IEC 60900:2018标准

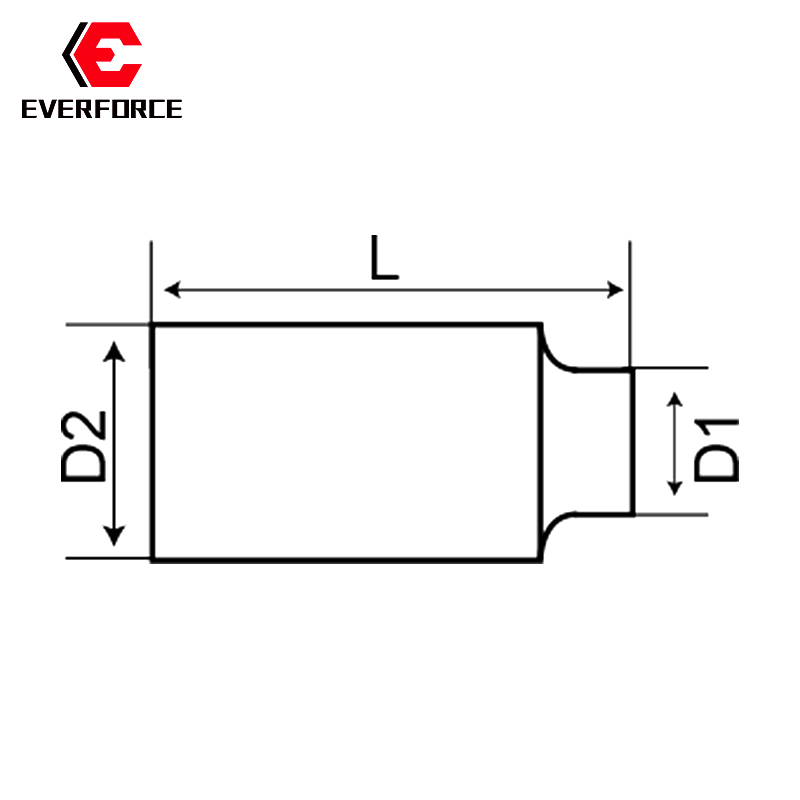

| code | L | size | D2 | D1 |
| EF8301102-01 | 42mm | 4 | 17.5 | 10 |
| EF8301102-02 | 42mm | 5 | 17.5 | 11 |
| EF8301102-03 | 42mm | 5.5 | 17.5 | 11.5 |
| EF8301102-04 | 42mm | 6 | 17.5 | 12.5 |
| EF8301102-05 | 42mm | 7 | 17.5 | 14 |
| EF8301102-06 | 42mm | 8 | 17.5 | 15 |
| EF8301102-07 | 42mm | 9 | 17.5 | 16 |
| EF8301102-08 | 42mm | 10 | 17.5 | 17.5 |
| EF8301102-09 | 42mm | 11 | 17.5 | 19 |
| EF8301102-10 | 42mm | 12 | 17.5 | 20 |
| EF8301102-11 | 42mm | 13 | 17.5 | 21 |
| EF8301102-12 | 42mm | 14 | 17.5 | 22.5 |
