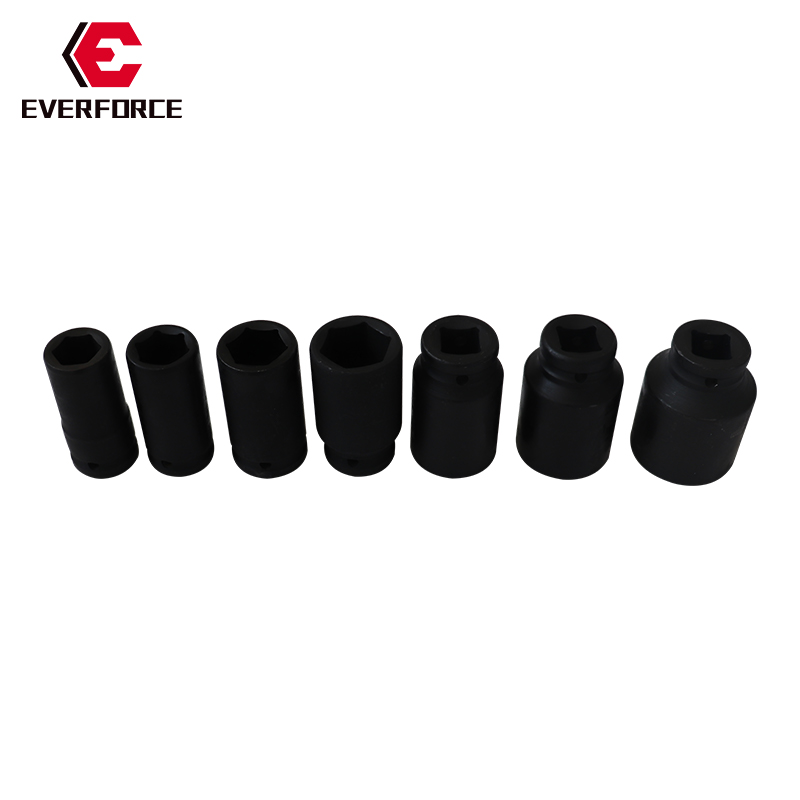

3/4"公英制六角气动长套筒
型号规格D1D2LPCS(六角符号）（mm）(mm)(mm)纸箱图片EF51008011730.1449060EF51008021831.4449060EF51008031932.6449060EF51008042033.8449060EF51008
详情介绍
| 型号 | 规格 | D1 | D2 | L | PCS |
| (六角符号） | （mm） | (mm) | (mm) | 纸箱图片 | |
| EF5100801 | 17 | 30.1 | 44 | 90 | 60 |
| EF5100802 | 18 | 31.4 | 44 | 90 | 60 |
| EF5100803 | 19 | 32.6 | 44 | 90 | 60 |
| EF5100804 | 20 | 33.8 | 44 | 90 | 60 |
| EF5100805 | 21 | 35.1 | 44 | 90 | 60 |
| EF5100806 | 22 | 36.6 | 44 | 90 | 60 |
| EF5100807 | 23 | 37.6 | 44 | 90 | 60 |
| EF5100808 | 24 | 38.9 | 44 | 90 | 60 |
| EF5100809 | 25 | 40.1 | 44 | 90 | 60 |
| EF5100810 | 26 | 41.3 | 44 | 90 | 60 |
| EF5100811 | 27 | 42.6 | 44 | 90 | 60 |
| EF5100812 | 28 | 44 | 44 | 90 | 60 |
| EF5100813 | 29 | 45.1 | 44 | 90 | 60 |
| EF5100814 | 30 | 46.1 | 44 | 90 | 60 |
| EF5100815 | 31 | 47.6 | 44 | 90 | 60 |
| EF5100816 | 32 | 48.9 | 44 | 90 | 60 |
| EF5100817 | 33 | 50.6 | 44 | 90 | 60 |
| EF5100818 | 34 | 51.4 | 44 | 90 | 60 |
| EF5100819 | 35 | 52.7 | 44 | 90 | 60 |
| EF5100820 | 36 | 53.9 | 44 | 90 | 60 |
| EF5100821 | 37 | 55.2 | 44 | 90 | 60 |
| EF5100822 | 38 | 56.4 | 44 | 90 | 60 |
| EF5100823 | 40 | 58.9 | 44 | 90 | 60 |
| EF5100824 | 41 | 60.1 | 44 | 90 | 60 |
| EF5100825 | 42 | 61.4 | 44 | 90 | 30 |
| EF5100826 | 43 | 62.7 | 44 | 90 | 30 |
| EF5100827 | 45 | 64.4 | 44 | 90 | 30 |
| EF5100828 | 46 | 66.4 | 44 | 90 | 30 |
| EF5100829 | 48 | 71.4 | 44 | 90 | 30 |
| EF5100830 | 49 | 70.2 | 44 | 90 | 30 |
| EF5100831 | 50 | 71.4 | 44 | 90 | 30 |
| 型号 | 规格 | D1 | D2 | L | PCS |
| (六角符号） | （mm） | (mm) | (mm) | 纸箱图片 | |
| EF-503732 | 11/16" | 30.6 | 44 | 90 | 60 |
| EF-503733 | 3/4" | 32.6 | 44 | 90 | 60 |
| EF-503734 | 13/16" | 34.7 | 44 | 90 | 60 |
| EF-503735 | 7/8" | 36.6 | 44 | 90 | 60 |
| EF-503736 | 15/16" | 38.9 | 44 | 90 | 60 |
| EF-503737 | 1" | 40.7 | 44 | 90 | 60 |
| EF-503738 | 1-1/16" | 42.6 | 44 | 90 | 60 |
| EF-503739 | 1-1/8" | 44.5 | 44 | 90 | 60 |
| EF-503740 | 1-3/16" | 46.4 | 44 | 90 | 60 |
| EF-503741 | 1-1/4" | 48.9 | 44 | 90 | 60 |
| EF-503742 | 1-5/16" | 50.6 | 44 | 90 | 60 |
| EF-503743 | 1-3/8" | 52.7 | 44 | 90 | 60 |
| EF-503744 | 1-7/16" | 54.6 | 44 | 90 | 60 |
| EF-503745 | 1-1/2" | 56.4 | 44 | 90 | 60 |
| EF-503746 | 1-9/16" | 58.9 | 44 | 90 | 60 |
| EF-503747 | 1-5/8" | 60.1 | 44 | 90 | 60 |
| EF-503748 | 1-11/16" | 62.7 | 44 | 90 | 30 |
| EF-503749 | 1-3/4" | 64.5 | 44 | 90 | 30 |
| EF-503750 | 1-13/16" | 66.4 | 44 | 90 | 30 |
| EF-503751 | 1-7/8" | 68.8 | 44 | 90 | 30 |
| EF-503752 | 1-15/16" | 70.2 | 44 | 90 | 18 |
| EF-503753 | 2" | 72.8 | 54 | 90 | 18 |
